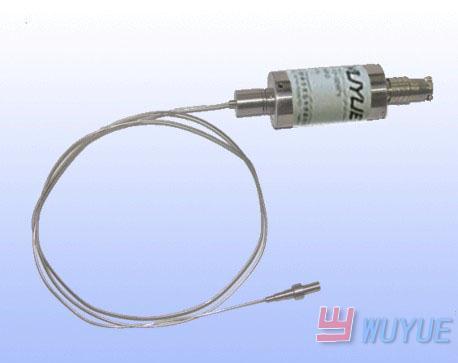

PT2707 melts pressure transducer/sensor for injection molding machine
Wuyue's PT2707 series melts pressure transducers are our patented product which specialized for injection molding machine.capillary metal hose with diameter of 1.6mm for isolation,maximum length can make 5m,maximum diameter of probe is 5mm.high stability,high accuracy,good anti-vibration ability.This series products are applied to measuring and control pressure of high temperature fluid which in mould cavity,diesel engine,etc.
PARAMETER:
· Pressure ranges: any scale from 0-200MPa
· Accuracy:< ±0.5% FS; < ±1.0% FS
· Signal output:1mV/V.1.5mV/V.2.0mV/V.3.33mV/V
· Working voltage:10VDC
· Calibration:80%FSO+1% high temperature melt pressure transdcuer
· Maximum temperature resistance of diaphragm:550°C
· Electrical Connector: special 5pin or 6pin connector
· Standard threading: versions on request
· Wuyue's melt pressure transducer got CE Approved
